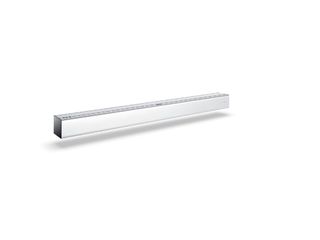

Powerdrive PL-FR Automatic linear sliding door system in escape and rescue routes for large and heavy doors of up to 160 kg leaf weight

Automatic sliding door drive Powerdrive PL-FR installed in the Grosspetertower in Zurich Automatic linear sliding door system in emergency exits for large and heavy doors up to 160 kg leaf weight
  • Escape route function with redundant drive design
  • Very powerful drive for large, heavy leaves and wide opening widths
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Adjustment options for all door movement parameters
  • Freely configurable inputs and outputs for different functions
Show more
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Various mechanical and electrical locks are optionally available
Contact us

Automatic linear sliding door system in escape and rescue routes for large and heavy doors of up to 160 kg leaf weight

Application Areas

  • Single and double leaf sliding door systems along escape and rescue routes
  • Interior and exterior doors with high access frequency
  • Opening widths from 700 to 3000 mm possible
  • Door leaf weights of up to 160 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass clamping profile, on-site frame and wooden leaves

Technical data

Powerdrive PL-FR
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fine-framed insulating glass Yes
MONO glass fine-framed Yes
ESG clamping profile Yes
Framed leaf (on site) Yes
Wooden leaf (on site) Yes
Height 150 mm
Depth 185 mm
Leaf weight (max.) 1-leaf 160 kg
Leaf weight (max.) 2-leaf 160 kg
Opening width 1-leaf 700 mm - 3000 mm
Opening width 2-leaf 800 mm - 3000 mm
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005
