Wireless programme

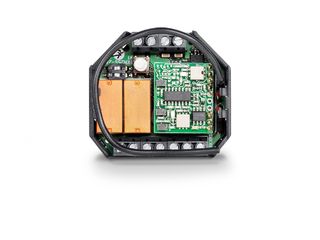

WRM-24 * Receiving module for activating automatic doors and window drives with 24 V DC

WRM 24 receiving module for the wireless activation of doors and windows
  • Encrypted communication via rolling code with up to 74 trillion code combinations
  • Simple teach-in via learn button with acoustic feedback
  • Up to 85 radio transmitters can be taught
  • Integrated DIP switch to select different modes of operation
  • Pulse mode, pulse and continuous mode, dead man's mode, or self-locking mode
  • Smallest housing dimensions for integrated installation within a flush-mounted socket
Show more
  • Two outputs for individual connection possibilities
Contact us

Application Areas

  • Activation of GEZE automatic doors and window drives via the GEZE wireless program
  • Flush-mounted installation

Technical data

WRM-24
Dimensions 52 x 47 x 23 mm
Switching current 100 mA
Operating current 12.5 mA
Output 2 potential-free relay contacts
IP rating IP20
Type of installation Flush-mounted installation
Connection type Screw terminal
Transmission frequency 433.93 Mhz
Service temperature 0 - 50 °C

Variants & Accessories
