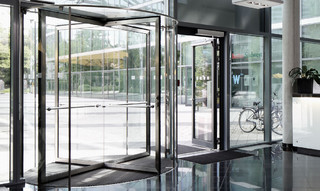

TSA 325 NT GG * Automatic revolving door system for the realization of all-glass solutions
- Very quiet running, low-wear drive solution with a canopy height of at least 17 mm
- Drive and control technology are fully concealed in the floor

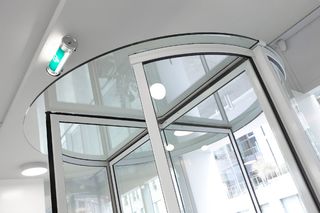

- Glass roof with reduced profiles provides additional transparency
- Reduced aluminium profiles with rounded edges create modern-looking optics
- Drum walls made of curved laminated safety glass (LSG)
- Door leaves made of fine-framed toughened safety glass (ESG)
- Two half shells made of heat-strengthened glass form the roof, which is held by stainless steel point fixings.
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Manual operation of the door possible, e.g. to carry out cleaning work
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- 3- and 4-leaf all-glass door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3000 mm possible
Technical data
TSA 325 NT GG | |
Manual operation | Yes |
With speed limiter (optional) | Yes |
With positioning device (optional) | Yes |
Fully automatic operation | Yes |
Servo function | Yes |
Suitability for escape and rescue routes | No |
Break-out function (BO) | No |
Inner diameter (min.) | 1800 mm |
Inner diameter (max.) | 3000 mm |
For 3-leaf door systems | Yes |
For 4-leaf door systems | Yes |
Clear passage height | 3000 mm |
Canopy height (min.) | 17 mm |
Side elements version | 16 mm GG, Special glass on request |
Version of roof structure | Glass roof |
Illumination | not possible with glass roof |
Floor covering | Entrance mat, Entrance mat according to customer wishes |
Night-time closer layout | Outside |
Night-time closer type | Manual |
Night-time closer design | 10 mm LSG |
Lock | Manual |
Door handles horizontal or vertical | Yes |
Floor ring | Yes |
Underfloor operator | Yes |
Disabled person's button | Yes |
Standard conformity | DIN 18650, EN 16005 |
