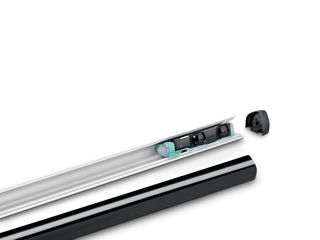

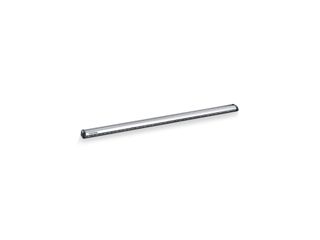

GC 338 * Sensor strip with standby mode for the protection of automatic swing and revolving doors
- Energy and space-saving sensor strip
- Standby mode provides up to 50 % energy savings and increases the life span of the LED diodes
- Close-knit detection area secures leaf widths of up to max. 1500 mm
- Integrated object and wall blanking near maximum door opening
- Automatized teaching of the system with the push of a button
- All settings can be conveniently made by DIP switch
Application Areas
- Protection of automatic swing and revolving doors
- Interior and exterior doors
- Complicated flooring, such as reflective floors, entrance mats, metal rails
- Narrow door profiles
- Door widths 600 to 1500 mm
- Minimum possible length of the sensor strip with 1 transmitter/receiver module each: 51 cm
- Minimum possible length of the sensor strip with 2 transmitter/receiver modules each: 83 cm

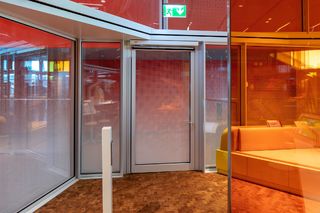

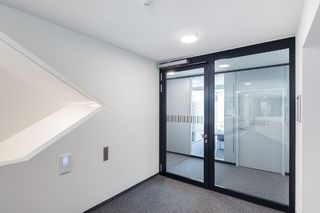

Installation situations in reference objects and videos
Technical data
GC 338 | |
Technology | Active infrared beams |
Switching voltage | 30 V |
Switching capacity max. | 100 mA |
Operating current | 30 mA |
IP rating | IP54 |
Connector cable length | 5000 mm |
Installation height (min.) | 1500 mm |
Installation height (max.) | 3500 mm |
Reaction time | < 52 ms and < 200 ms in boost mode |
Service temperature | -30 - 60 °C |
Humidity | < 90% relative, non-condensing |
Standard conformity | EN 16005, DIN 18650 |
Downloads
LABELLING OBLIGATION: © Jürgen Pollak / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Pollak / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Pollak / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
