TSA 325 NT

TSA 325 NT BO * Automatic revolving door system for escape and rescue routes with break-out function

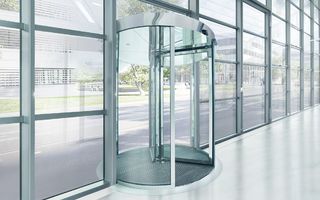

Product Image revolving door website TSA 325 NT BO TSA 325 NT BO, Roche Tower, Product image Website revolving door
  • BO function allows the leaves and side elements to swing open in the direction of escape
  • Integrated electrical lockings for "night" mode of operation
  • Very quiet running, low-wear drive solution with a canopy height of at least 200 mm
  • Precise closing of the door leaves with the side walls
  • Effective insulation effect against draughts, weather and noise
  • Adjustable automatic speed setting, in line with the number of people passing through
Show more
  • Manual operation of the door possible, e.g. to carry out cleaning work
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Contact us

Application Areas

  • 3- and 4-leaf door systems in escape and rescue routes
  • Interior and exterior doors with maximum safety requirements
  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Inner diameter ranging from 1800 to 3600 mm possible
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Technical data

TSA 325 NT BO
Manual operation No
With speed limiter (optional) No
With positioning device (optional) No
Fully automatic operation Yes
Servo function No
Suitability for escape and rescue routes Yes
Break-out function (BO) Yes
Inner diameter (min.) 1800 mm
Inner diameter (max.) 3600 mm
For 3-leaf door systems Yes
For 4-leaf door systems Yes
Clear passage height 3000 mm
Canopy height (min.) 200 mm
Side elements version 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request
Version of roof structure As dust protection roof with wood covering, optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system Electric air curtain, hot water air curtain, possible, depends on the ceiling construction
Night-time closer layout Inside, Outside
Night-time closer type Manual, Automatic
Night-time closer design 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request
Lock Manual, Rod, electromechanical
Door handles horizontal or vertical Yes
Floor ring Yes
Underfloor operator No
Disabled person's button Yes
Standard conformity DIN 18650, EN 16005
