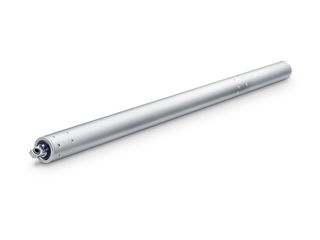

E 1500 N * Spindle drive with slim dimensions for heavy leaves in the façade and roof area
- Slim dimensions and an aluminium housing for highest design demands
- Robust and corrosion-resistant design with built-in end position damping
- Syncro drive sets are available for leaf widths over 1200 mm
- Extensive brackets allow versatile installation on main or secondary closing edges
- Synchro set without external control device
Application Areas
- Heavy window elements in the façade and roof area
- Natural ventilation, smoke and heat extraction systems
- Inward- and outward opening windows with bottom-hung, top-hung and side-hung leaves as well as roof windows
- Can be used in the exhaust air and air intake
- Installation on wooden, PVC or metal windows

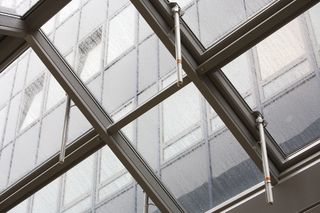

Installation situations in reference objects and videos
Technical data
E 1500 N | |
Dimensions | 36 x 36 mm |
Opening speed RWA | 4 mm/s |
Opening speed ventilation | 4 mm/s |
Closing speed (max.) | 4 mm/s |
Holding force (max.) | 5000 N |
Compressive force | 1600 N |
Tensile force | 1600 N |
Voltage at operation | 24 V (+25 % to -20 %) |
Operating voltage | 24 V DC |
Current consumption | 1.2 A |
Power consumption | 29 W |
Residual ripple | 20 % |
Duty rating | 30 % |
Connector cable length | 2.5 m |
Special length of connector cable | 5 m, 10 m |
Min. core cross section | 1 mm² |
Number of cores | 3 cores |
Service temperature | -5 - 75 °C |
IP rating | IP65 |
protection rating | III |
Synchronising function | Yes |
Type of additional locking mechanism | Locking drive |
Type of stroke shortening | Factory setting |
End position cut-off extended | electronic |
End position cut-off retracted | electronic |
Overload cut-off | Yes |
Complete opening within 60 s | yes, up to 300 mm stroke |
Number synchronisation drive units | 4 |
Bottom-hung window INWARD-opening frame installation | Yes |
Bottom-hung window INWARD-opening leaf installation | Yes |
Bottom-hung window OUTWARD-opening frame installation | Yes |
Side-hung window INWARD-opening frame installation | Yes |
Side-hung window INWARD-opening door leaf installation | Yes |
Side-hung window OUTWARD-opening frame installation | Yes |
Top-hung window INWARD-opening frame installation | Yes |
Top-hung window INWARD-opening leaf installation | Yes |
Top-hung window OUTWARD-opening frame installation | Yes |
OUTWARD-opening roof window | Yes |
