OL 90 N
Mullion-frame transmission size 75 for OL 90 N *
- Achieves the full opening width of 170 mm for all leaf heights
- The opening width can be adjusted
- Post protrusion bridged by a swivel joint
- Can be installed on the secondary closing edge or main closing edge
- Completely pre-mounted assembly group facilitates installation
Application Areas
- Convenient daily ventilation of windows in mullion-transom façades
- Can be used in combination with OL 90 N scissors on inward opening bottom-hung and top-hung windows
- Automation by E 212 electric linear drive
- Installation on wooden, plastic or aluminium windows
- Frame installation
Technical data
| Mullion-frame transmission size 75 for OL 90 N | |
| Leaf width (min.) | 550 mm |
| Leaf height (min.) | 250 mm |
| Leaf weight (max.) | 80 kg |
Downloads

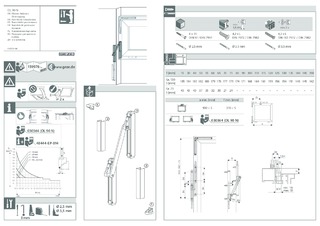

Post/frame transmission size 75
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
