External smoke switch control units

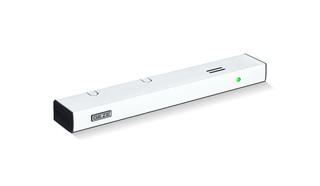

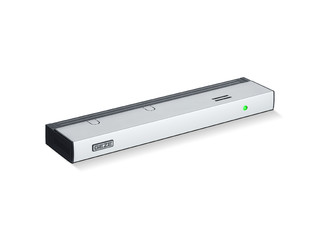

RSZ 7 * Extendable smoke switch control unit for all GEZE hold-open devices

RSZ 7 smoke switch control unit Solution for unfavourable lintel situations that leave too little space above the smoke chambers, for example: The RSZ 7 smoke switch control unit has a telescope function. The smoke detector can be extended, making it possible to bridge overhangs of about 30 mm.
  • Telescopic function for bridging overhangs of up to 30 mm
  • Connection to 230 V power supply and 24 V DC supply of the hold-open device
  • Voltage supply of the hold-open system is interrupted in the case of an alarm and the doors close
  • Integrated smoke switch with automatic adaption of the alarm threshold
  • Compensates for light contamination of the smoke chamber and thus increases the service life
  • Visual display of the current control unit status
Show more
  • Additional smoke switches can be connected
Contact us

Application Areas

  • Approved for all GEZE hold-open devices for the early detection of fire and smoke
  • Difficult lintel situations, for example with too little space above the smoke chamber
  • Installation above the active leaf on the vertical wall
  • Installation possible with surface-mounted line-feed

Technical data

RSZ 7
Supply voltage 230 V
Frequency of supply voltage 50/60 Hz
Output power 6.3 W
Current consumption 0.08 A
IP rating IP20
protection rating II
Output voltage 24 V DC
Connection of additional smoke switches 2
Height 30 mm
Depth 55 mm
Ambient temperature -5 °C - 50 °C
