TS 500 N EN3 with hold-open unit

Closer body TS 500 N EN3 * Basic body for floor-mounted door closer EN3

GEZE TS 500 N EN3 Door closer
  • Fixed closing force of EN3
  • Can be used for right and left hand doors without conversion
  • Closing speed can be individually adjusted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Integrated back check, slows down doors that are thrown open forcefully
  • All functions can be adjusted from above and in the installed state
Contact us

Application Areas

  • Right and left single- and double-action doors
  • Single- and double-action doors up to 950 mm leaf width and 100 kg weight
  • Floor mounting, concealed
  • Not permitted for use on fire and smoke protection doors.

Technical data

Closer body TS 500 N EN3
Use on single-/double-action door Single-action door, Double-action door
Opening angle (max.) 170 °
Closing force in accordance with EN 1154 EN 3
Leaf width (max.) 950 mm
Leaf weight (max.) 100 kg
DIN direction left / right
Standard conformity EN 1154:1996/A1:2002/AC:2006

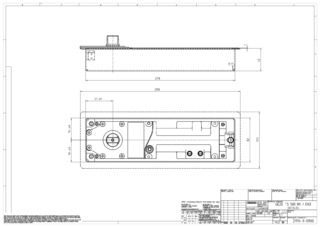

Length 278 mm
Width 82 mm
Height 42 mm
Length adjustment range for cement box 10 mm
Width adjustment range for cement box 10 mm
Height adjustment range for cement box 6 mm
Closing force adjustable No
Adjustable closing speed Yes
Latching action adjustable No
Back check integrated Mechanically fixed
Safety valve againts overload Yes
Thermo-control valves Yes
Closing effect from 170 °
Hold-open range 85 ° - 120 °
