Door draw-in damper

GEZE ActiveStop glass, surface-mounted * Door damper on both sides for glass swing doors in the indoor area

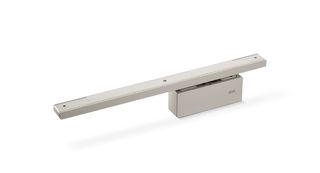

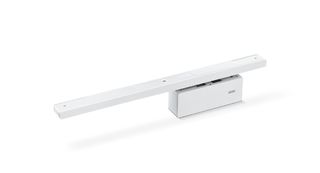

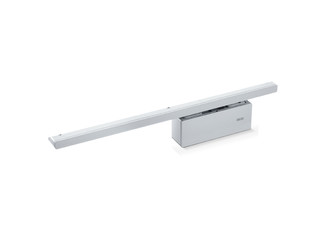

GEZE ActiveStop surface-mounted, silver, glass Enter your rooms more comfortably than ever before: The GEZE ActiveStop door damper can stop doors gently, close quietly and keep them open comfortably. It eliminates issues like slamming doors, trapped fingers and damage to doors or furniture.
  • Door opening angle with variable adjustment from 80°-110°
  • Can be used for right and left hand doors without conversion
  • Soft opening and closing of doors up to max. 45 kg leaf weight
  • Gentle stopping, quiet closing and comfortable keeping open of doors
  • Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
  • Secure holding of the door when open, meaning no door is stopper necessary
Show more
  • Opening and latching speed when installed can be set via a valve
  • Integrated safety valve offers overload protection
Contact us

Door damper on both sides for glass swing doors in the indoor area

Application Areas

  • Right and left glass single action doors with wooden frame indoors
  • Room doors with high access convenience
  • Single-action doors up to 1100 mm leaf width
  • Barrier-free access in accordance with DIN 18040

Technical data

GEZE ActiveStop glass, surface-mounted
Depth 34 mm
Height 68 mm
Leaf weight (max.) 45 kg
Leaf width (max.) 1100 mm
Category of door flush-mounted, rebated
Identical design for DIN left and DIN right Yes
Installation type surface-mounted
Adjustable draw-in damper Yes, via valve
Draw-in damper in direction of closing movement from 25 °
Free swing area 25 ° - 60 °
Draw-in damper in direction of opening movement from 60 °
Adjustable door opening angle Yes, stepless
Hold-open position adjustable 80 ° - 110 °
Safety valve againts overload Yes
