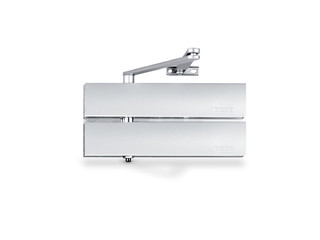

TS 4000 Tandem
TS 4000 Tandem complete package * Overhead door closer with link arm larger than EN 7 with back check
- Closing force can be variably adjusted from the front
- Visual closing force display ensures correct setting
- Closing seed can be adjusted from the front via valve
- Latching action can be adjusted via link arm
- Back check can be adjusted from the front via valve
- Door closer, can be used for right and left hand doors
- Minimal installation effort due to low number of individual parts and quick setting
- Mounting is via the top closer with standard fitting dimensions
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors from 1600 mm leaf width and very high weight (size > EN7)

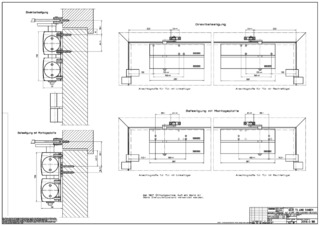

- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
Technical data
| TS 4000 Tandem complete package | |
| Closing force in accordance with EN 1154 | EN > 7 |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Identical design for DIN left and DIN right | Yes |
| Suitability for fire protection doors | Yes |
| Length | 287 mm |
| Width | 51 mm |
| Height | 130 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via link arm |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |

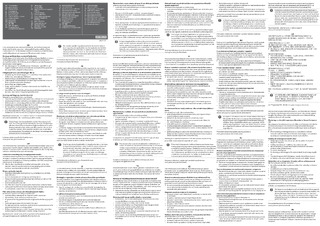

Downloads
