TS 4000 EN 5-7 * Overhead door closer with link arm for single leaf doors with a leaf width of up to 1600 mm

Door closer TS 4000 Overhead pinion door closer with link arm, Closing force size 1-6 and 5-7 acc. to
  • Closing force with variable adjustment from EN5-7
  • Can be used for right and left hand doors without conversion
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Closing speed can be individually adjusted
  • Integrated opening break function, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
Show more
  • All functions can be set from the front (except for latching action)
Contact us

TS 4000 EN 5-7

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1600 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Installation situations in reference objects and videos

Door closer TS 4000 in the MST Medisch Spectrum Twente GEZE door closer TS 4000 with link arm on a single leaf door. Latching action over the link arm with integrated back check and closing force display, also suitable for fire and smoke protection doors.

Door closer TS 4000 in the MST Medisch Spectrum Twente

GEZE door closer TS 4000 with link arm on a single leaf door. Latching action over the link arm with integrated back check and closing force display, also suitable for fire and smoke protection doors. © Erwin Kamphuis / GEZE GmbH

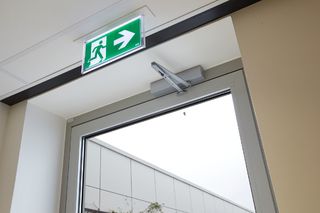

Door closer TS 4000 on a single leaf door in the MST Medisch Spectrum Twente. GEZE door closer TS 4000 with link arm on a single leaf door. Latching action over the link arm with integrated back check and closing force display, also suitable for fire and smoke protection doors.

Door closer TS 4000 on a single leaf door in the MST Medisch Spectrum Twente.

GEZE door closer TS 4000 with link arm on a single leaf door. Latching action over the link arm with integrated back check and closing force display, also suitable for fire and smoke protection doors. © Erwin Kamphuis / GEZE GmbH

Technical data

TS 4000 EN 5-7
Closing force in accordance with EN 1154 EN 5 - 7
Leaf width (max.) 1600 mm

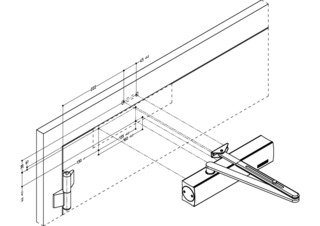

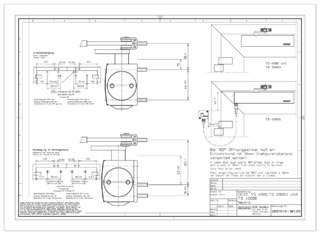

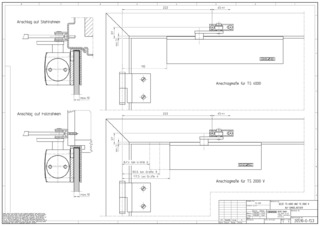

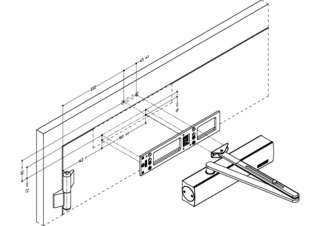

Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Optional

Downloads

Door closer TS 4000 in the MST Medisch Spectrum Twente

LABELLING OBLIGATION:  © Erwin Kamphuis / GEZE GmbH

Installation situation (865753)
Door closer TS 4000 on a single leaf door in the MST Medisch Spectrum Twente.

LABELLING OBLIGATION:  © Erwin Kamphuis / GEZE GmbH

Installation situation (865752)

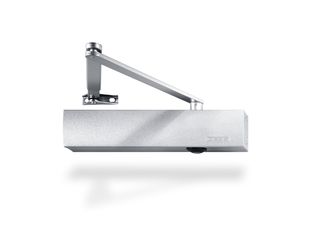

Door closer TS 4000
