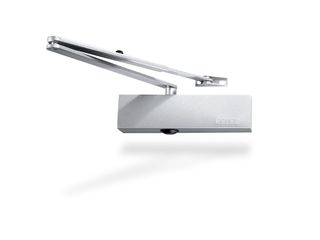

TS 2000 NV BC * Overhead door closer with link arm for single leaf doors with a leaf width up to 1100 mm
- Closing force of EN2-4 with variable adjustment
- Can be used for right and left hand doors without conversion
- Integrated back check, slows down doors that are thrown open forcefully
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- All functions can be set from the front (except for closing force)
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1100 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
Technical data
TS 2000 NV BC | |
Closing force in accordance with EN 1154 | EN 2 - 4 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
Leaf width (max.) | 1100 mm |
Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | At the side |
Hold-open function | Optional |
