Panic locks for tubular framed doors

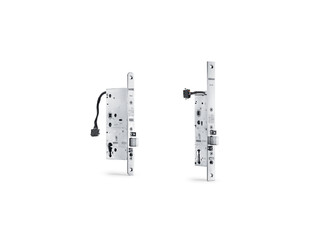

IQ lock C * Mechanical contact lock with feedback contacts for single leaf doors

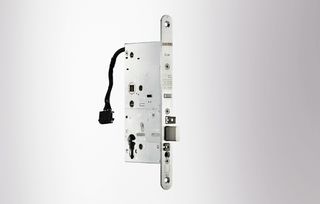

IQ Lock C
  • Mechanical self-locking ensures automatic crossbar projection every time the door is closed
  • Panic function which opens (even locked) emergency exits in the direction of escape
  • Divided cross latch prevents the bolt from locking even under side-load
  • Integrated feedback contacts make complete monitoring of the door possible
  • Optional sabotage monitoring or cylinder contact
  • Activation of emergency exits secured by emergency exit systems possible without key switch
Show more
  • Small rear backset and small dimensions of the lock case
Contact us

Application Areas

  • Single leaf emergency exit and panic doors (left hand and right hand door)
  • Doors along escape and rescue routes
  • Fire and smoke protection doors

Technical data

IQ lock C
DIN direction left / right
Service temperature -10 - 50 °C
Panic function / mechanical self-locking Yes
Divided cross latch (3 mm gap between latch and bolt) Yes
Feedback contacts for lock states Yes
Optional sabotage monitoring or cylinder contact Yes
Current consumption N/A, N/A
Contact rating 30 V / 500 mA
Resistant to forcing 10000 N
Connector cable length 15 m
