ST 220 Service terminal for the wireless and wired parameter setting of GEZE door and window products

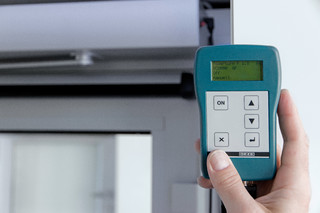

GEZE service terminal ST 220 The service terminal can be used to set all parameters and functions for emergency exit systems and automatic door drives.
  • Four-line display and slim user interface for simple operation
  • IR interface for the wireless parameter setting of emergency exit system door control units
  • Wired parameter setting via RS 485 bus
  • Voltage supply via cable in the case of wired operation
  • 4x AAA batteries required for IR interface
Contact us

Service terminal for the wireless and wired parameter setting of GEZE door and window products

Application Areas

  • Emergency exit system door control units
  • Motor locks
  • Building automation components
  • Automatic door drives
  • Automatic window drives

Technical data

ST 220
Width 80 mm
Height 125 mm
Depth 37 mm
IP rating IP40
Operating voltage 24 V
protection rating III
