Powerturn

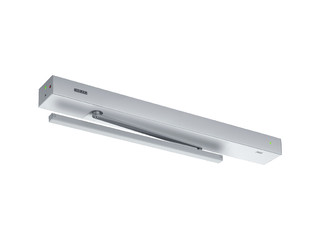

Powerturn F/R * Electromechanical swing door drive for single leaf fire and smoke protection doors with integrated smoke switch

Powerturn F/R
  • Smart swing function for easy manual door opening
  • Closing force of EN4-7 with variable adjustment
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
Show more
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
  • Optional radio reception board for wireless activation by radio transmitter
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Fire and smoke protection doors
  • Hold-open systems with integrated hold-open function – country-specific specifications must be observed
  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1600 mm leaf width or 600 kg weight
  • Minimum leaf width 800 mm
  • Interior and exterior doors with high access frequency
  • Transom installation hinge and opposite hinge side

Technical data

Powerturn F/R
Leaf weight (max.) 1-leaf 600 kg
Leaf width (min.-max.) 857 mm - 1600 mm
Reveal depth (max.) 300 mm
Opening angle (max.) 136 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Mechanical latching action Yes
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Power supply for external consumers (24 V DC) 1.2 A
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
Mode of operation Automatic, Off, Permanently open, Shop closing, Night
Automatic function Yes
Low-energy function Yes
function smart swing Yes
Servo function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive, MPS programme switch
Parameter setting Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth)
Standard conformity EN 16005, DIN 18650, DIN 18263-4
Suitability for fire protection doors Yes
Smoke switch integrated Yes
