TS 5000 R-ISM/0

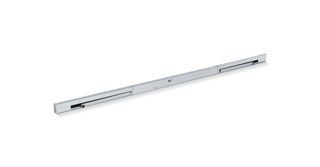

R-ISM/0 guide rail TS 5000 * continuous, with integrated closing sequence control, smoke switch control unit and levers, without electric hold-open device
- Integrated smoke switch control unit
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Operating voltage 230 V AC
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vandalism protection through flexible Bowden cable
- Horizontally adjustable in the installation position by 4 mm through elongated holes
- With screwed slide block
Application Areas
- Double leaf doors with closing sequence control
- Hold-open systems with integrated smoke switch
- For combination with a free swing door closer or hold-open magnet
- Installation on hinge side
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
- Up to 2800 mm hinge clearance
- Minimum hinge clearance 1500 mm, minimum width of the passive leaf 400 mm
Technical data
| R-ISM/0 guide rail TS 5000 | |
| Supply voltage | 230 V AC |
| Input voltage | 230 V AC |
| Frequency of supply voltage | 50/60 Hz |
| Duty rating | 100 % |
| IP rating | IP20 |
| Minimum hinge clearance | 1500 mm |
| Minimum passive leaf width | 400 mm |
| Standard conformity | EN 1158 |
| Approvals | General building approval from DIBt as a hold-open system |
| Length | 2740 mm |
| Width | 55 mm |
| Height | 30 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Optional |
| Hold-open device on the active leaf / passive leaf | No / No |
| Hold-open function using hold-open magnets on the active / passive leaf | Optional Optional |
| Smoke switch integrated | Yes |
| Contamination indicator | Yes |
| Adaption of the alarm threshold | Yes |
| Integrated power supply | Yes |
| Closing sequence control integrated | Yes |
| Height correction possible | Yes |
| Flexible opening restrictor | Yes |
Downloads

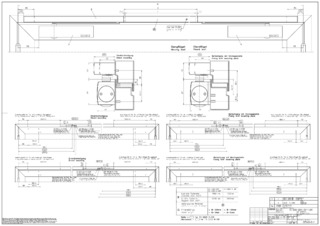

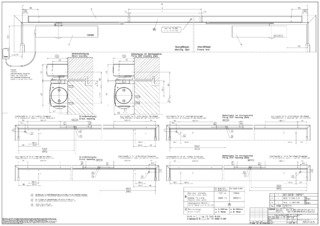

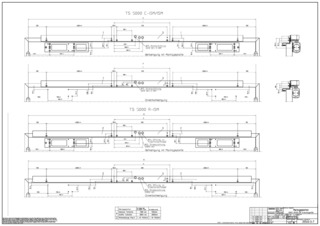

R-ISM/0/S guide rail TS 5000
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
