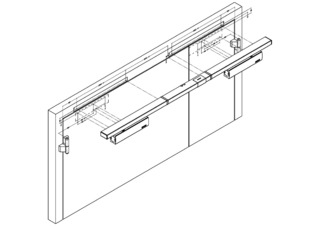

TS 5000 R-ISM/0 * Overhead door closer system with guide rail for double leaf doors with integrated closing sequence control and smoke switch without electric hold-open device
- System of two TS 5000 door closers and R-ISM/0 guide rail without electric hold-open device
- Closing force with variable adjustment from EN2-6
- Operating voltage 230 V AC
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Integrated smoke switch control unit, contamination indicator and adaption of the alarm threshold
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm
- Hold-open systems with hold-open magnet (as accessory) and smoke switch (integrated into the guide rail)
- Door leaf installation hinge side
Technical data
TS 5000 R-ISM/0 | |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
Leaf width (max.) | 1400 mm |
Type of installation | Door leaf installation hinge side |
Opening angle (max.) | 180 ° |
Input voltage | 230 V AC |
Frequency of supply voltage | 50 Hz |
Minimum hinge clearance | 1500 mm |
Minimum passive leaf width | 400 mm |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Electrical |
Hold-open device on the active leaf / passive leaf | Optional / Optional |
Hold-open range | 180 ° |
Smoke switch integrated | Yes |
Closing sequence control integrated | Yes |
