Corner fittings and pivot bearing

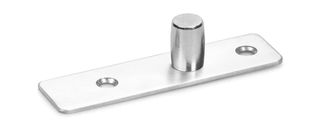

PT 24 * Glass Fitting top pivot bearing with pivot bearing bolts (ø 15 mm) and back plate

GEZE Glass Fitting PT 24 Glass fitting 111460
  • Stainless steel
Contact us

Application Areas

  • For full-glass doors
  • Door leaf weights up to 100 kg, door leaf widths up to 1,000 mm, door leaf heights up to 2,800 mm
  • For single-action and double-action doors
  • For internal and external systems
  • Suitable for single and double leaf swing doors
  • For combination with GEZE PT 20 Glass fitting

Technical data

PT 24
Dimensions 105 x 28 x 24 mm
Width 28 mm
Length 105 mm
Height 24 mm
Type of installation Ceiling
Material Stainless steel

Variants & Accessories
